Access SSO and SCIM Flow Over SAML

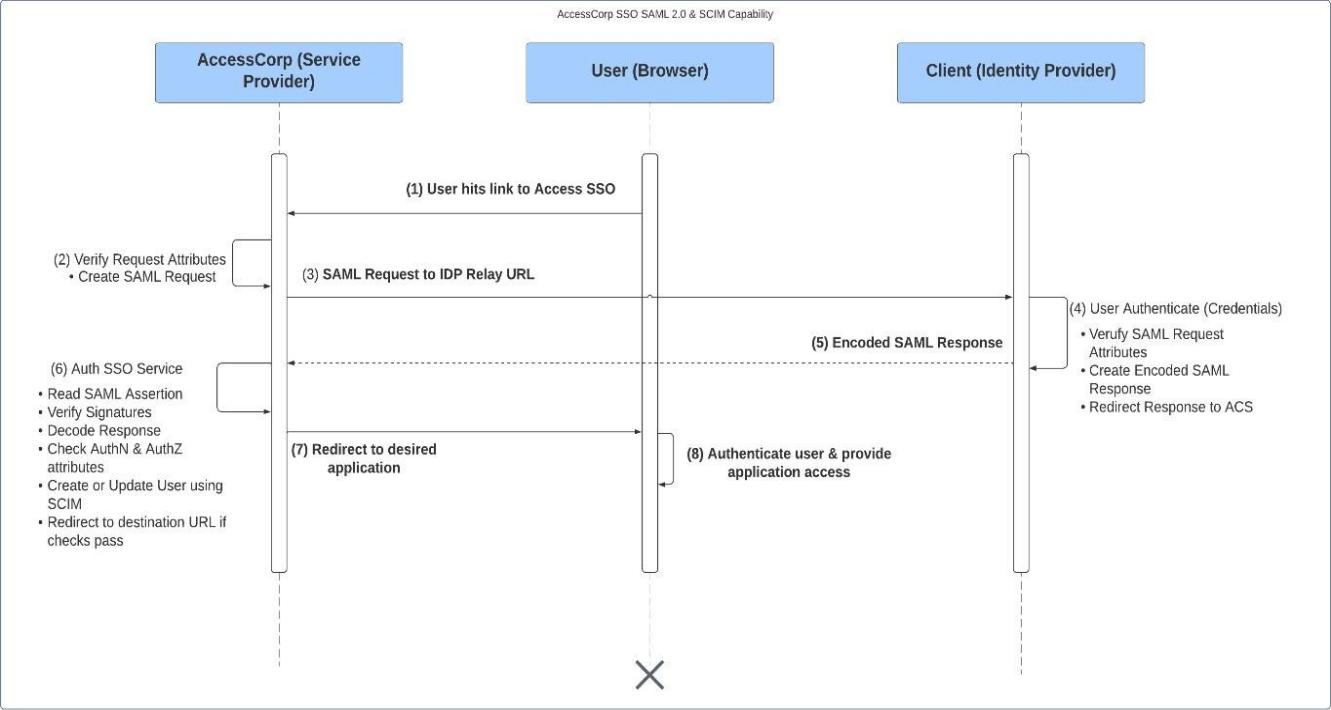

Access SSO and SCIM Flow Diagram Over SAML



  1. The user initiates a request from the browser using SSO URL provided by the Service Provider (SP). The SSO URL is SP application specific.

  2. The SP recognizes that the user is not yet authenticated and redirects the user to the Identity Provider (IdP) for Single Sign-On (SSO) login.

  3. The IdP authenticates the user and generates SAML assertions containing the user's identity and optionally attributes for provisioning and authorization.

  4. The IdP sends the SAML assertions back to SP’s ACS URL.

  5. The SP receives and processes the SAML assertions to validate their authenticity and extract the user's identity and attributes.

  6. User redirected to desired application URL following successful validation.
